OAuth 1.0 is a signature-based authorization scheme. Each request is signed with credentials you hold (a consumer key and access token, plus secrets) using a signature method you pick. The signature, signing parameters, and your credentials are sent in the Authorization header or in the request body. Use OAuth 1.0 when an API explicitly requires it (Twitter API v1.1, older Atlassian and Yahoo APIs, parts of Magento, and various RFC 5849 implementations). Most modern APIs use OAuth 2.0 instead.

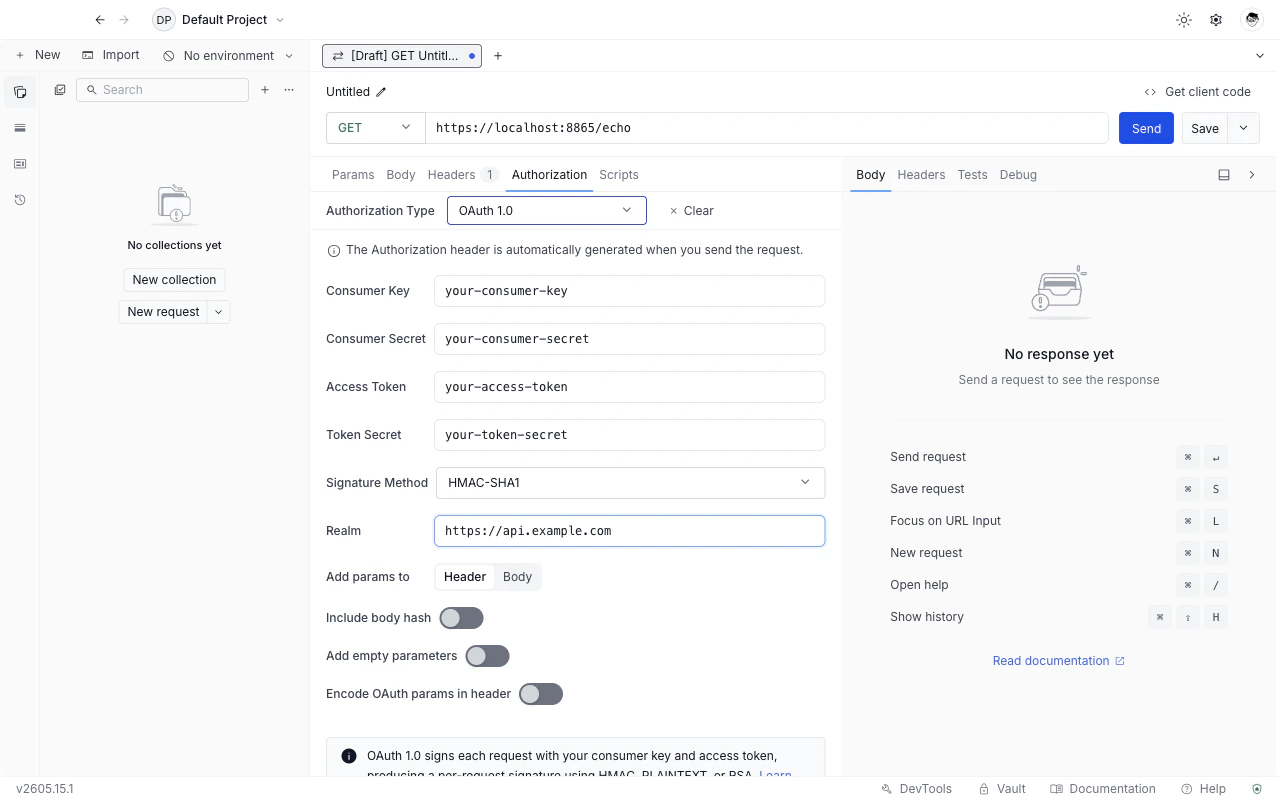

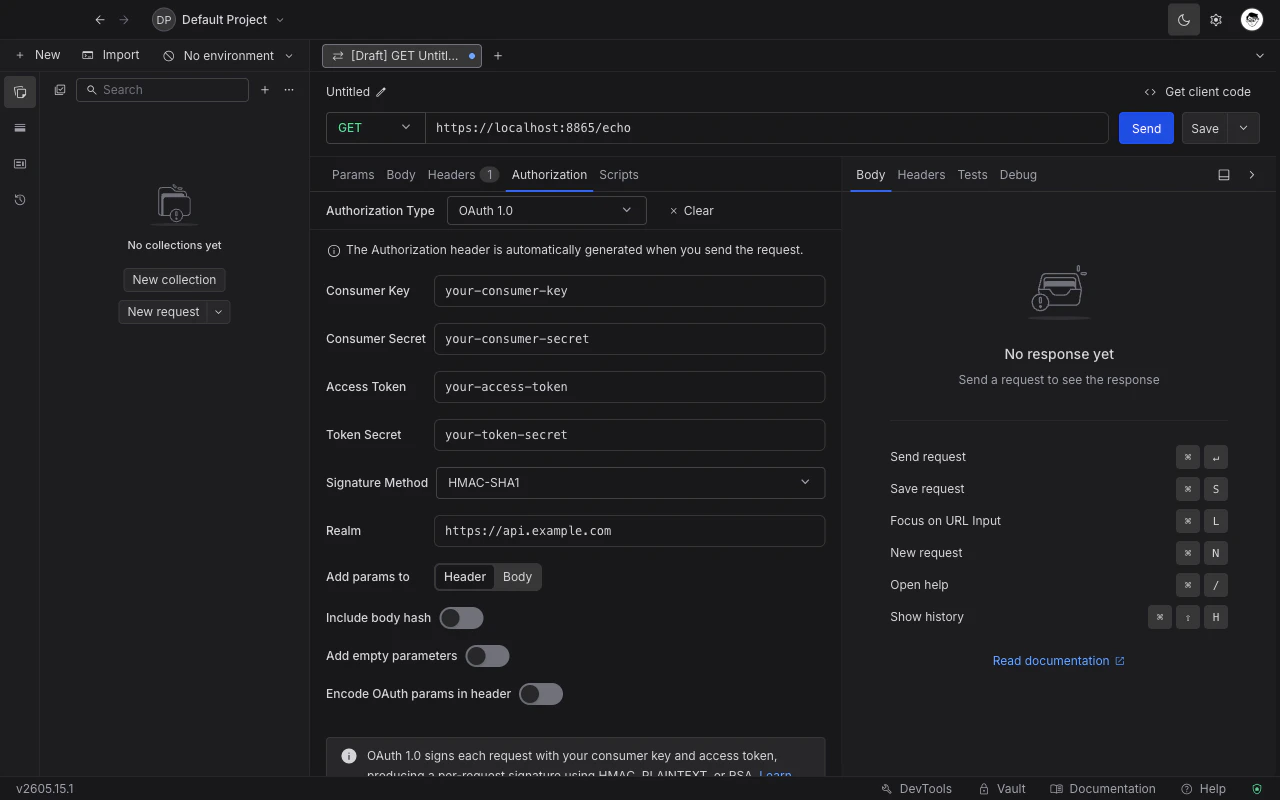

OAuth 1.0 form in the Authorization tab with template values for consumer key, consumer secret, access token, token secret, signature method, and realm.

​
Choose OAuth 1.0 as the auth type

1

Open the Authorization tab

Open any request or collection, then go to the Authorization tab.
2

Select OAuth 1.0

Pick OAuth 1.0 from the Authorization type dropdown. The OAuth 1.0 fields appear below the dropdown.
3

Fill in the required fields

See the field reference below.
4

Send the request

Click Send. Requestly computes the signature and attaches it to the request automatically.

​
Field reference

​
Credentials

FieldPurpose
Consumer KeyPublic identifier the provider issued for your application.
Consumer SecretShared secret paired with the consumer key. Used to sign the request.
Access TokenToken that represents the resource owner’s grant to your application.
Token SecretShared secret paired with the access token. Used together with the consumer secret to sign the request.
All four fields accept Requestly variables and vault references. Reference secrets by name (for example {{vault:twitter_consumer_secret}}) rather than pasting them inline.

​
Signature Method

Pick the algorithm used to sign the request. Requestly supports seven methods:
MethodWhat it uses
HMAC-SHA1HMAC keyed by your consumer and token secrets. Most widely supported.
HMAC-SHA256HMAC variant using SHA-256. Stronger than SHA-1; supported by newer providers.
HMAC-SHA512HMAC variant using SHA-512.
PLAINTEXTSends the secrets directly, with no signing. Only safe over HTTPS.
RSA-SHA1RSA signature using your private key and SHA-1 digest.
RSA-SHA256RSA signature with SHA-256 digest.
RSA-SHA512RSA signature with SHA-512 digest.
When you pick an RSA-* method, an RSA Private Key field appears. Paste the PEM-encoded private key (the block that starts with -----BEGIN RSA PRIVATE KEY----- or -----BEGIN PRIVATE KEY-----). The consumer secret and token secret fields are still used to populate the standard OAuth parameters, but the signature itself is computed from the RSA key.

​
Realm

Optional. If the provider expects a realm parameter inside the Authorization header (RFC 5849 §3.5.1), set it here. Leave blank when the provider does not require it.

​
Add params to

Where to put the OAuth parameters. Two choices:
  • Header (default): Requestly sends them in the Authorization header as OAuth oauth_consumer_key="…", oauth_token="…", ….
  • Body: Requestly sends them as application/x-www-form-urlencoded fields in the request body. Only valid when the request has a form body and uses a method that carries one (POST, PUT, PATCH).
Header is correct for the vast majority of providers. Use Body only if the API documentation specifies it.

​
Include body hash

When on, Requestly adds the oauth_body_hash extension parameter (OAuth Request Body Hash spec) to the signature for requests whose body is not application/x-www-form-urlencoded. Some providers (notably parts of the Yahoo and Google legacy APIs) require this; most do not.

​
Add empty parameters

When on, query parameters and form fields that have a name but an empty value are included in the signature base string. Some providers require empty parameters to be signed; the default is off because most do not.

​
Encode OAuth params in header

When on, the oauth_* values inside the Authorization header are percent-encoded a second time. This matches a stricter reading of RFC 5849 §3.5.1 that some providers enforce. If signature verification keeps failing for no obvious reason, try toggling this.

​
What Requestly does for you automatically

You do not need to fill in these OAuth parameters manually:
  • oauth_nonce (a fresh random nonce per request)
  • oauth_timestamp (current Unix time)
  • oauth_signature_method (driven by the Signature Method dropdown)
  • oauth_version (always 1.0)
  • oauth_signature (computed from the signature base string and your secrets / private key)
Requestly generates all five on every send, so the same configuration produces a fresh, valid signature each time.

​
Troubleshooting

Recompute the signature manually using the provider’s debugger (most large providers have one) and compare against Requestly’s signature base string. The most common causes:
  • A required parameter is missing from the request (the API expects it, the signature base string excludes it).
  • The clock on your machine is skewed by more than a few minutes - some providers reject stale timestamps.
  • Encode OAuth params in header does not match the provider’s expectation. Try toggling it.
Check that Consumer Secret and Token Secret have not been accidentally URL-encoded before you pasted them in. Requestly performs the OAuth encoding itself; double-encoding produces an invalid signature.
Confirm the key is PEM-encoded (begins with -----BEGIN). Encrypted PEM keys with a passphrase are not supported - decrypt the key first, or generate an unencrypted copy for use here.

​
