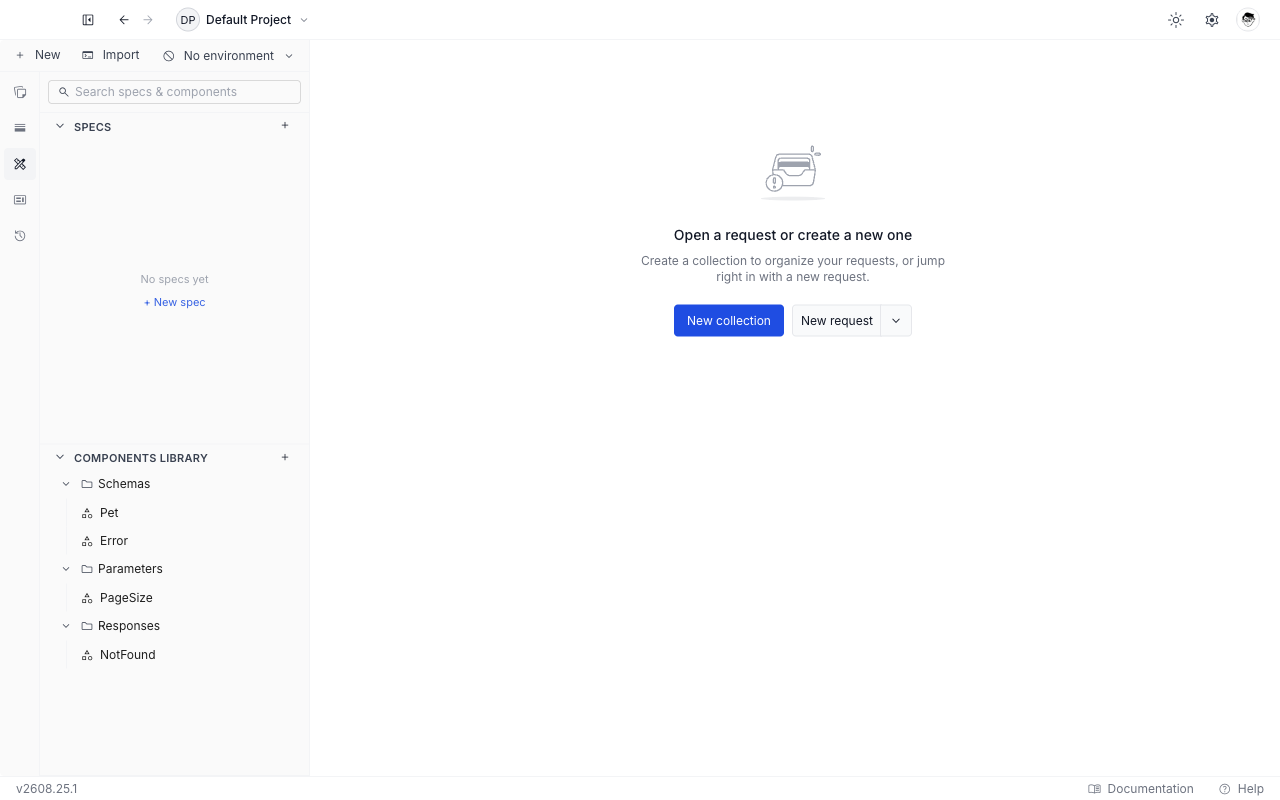

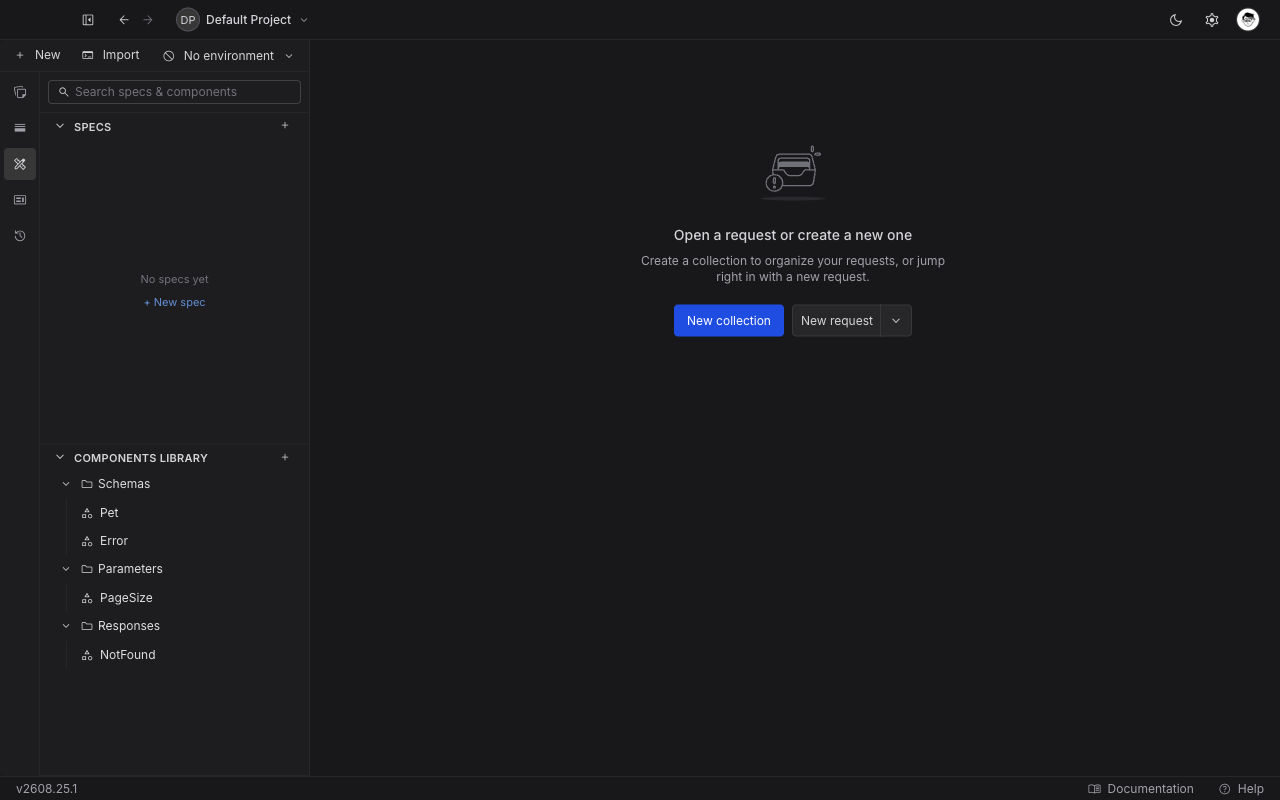

A pagination parameter, an error response, a User schema: the same handful of definitions turn up in every specification you write. The Component Library is where they live once. Each entry is an ordinary OpenAPI component object, and any specification in the project can point at it with a $ref. There is exactly one library per project, shared by every specification in it. Find it under Components Library in the API Design sidebar panel, below Specs. The section starts collapsed, so click the header to open it.

​
Categories

Entries are grouped by category, and the categories are OpenAPI’s own. All ten are available.
Path items are an OpenAPI 3.1 feature. Referencing one from a 3.0 document is reported as an issue rather than silently accepted.

​
Create a component

1

Pick a category

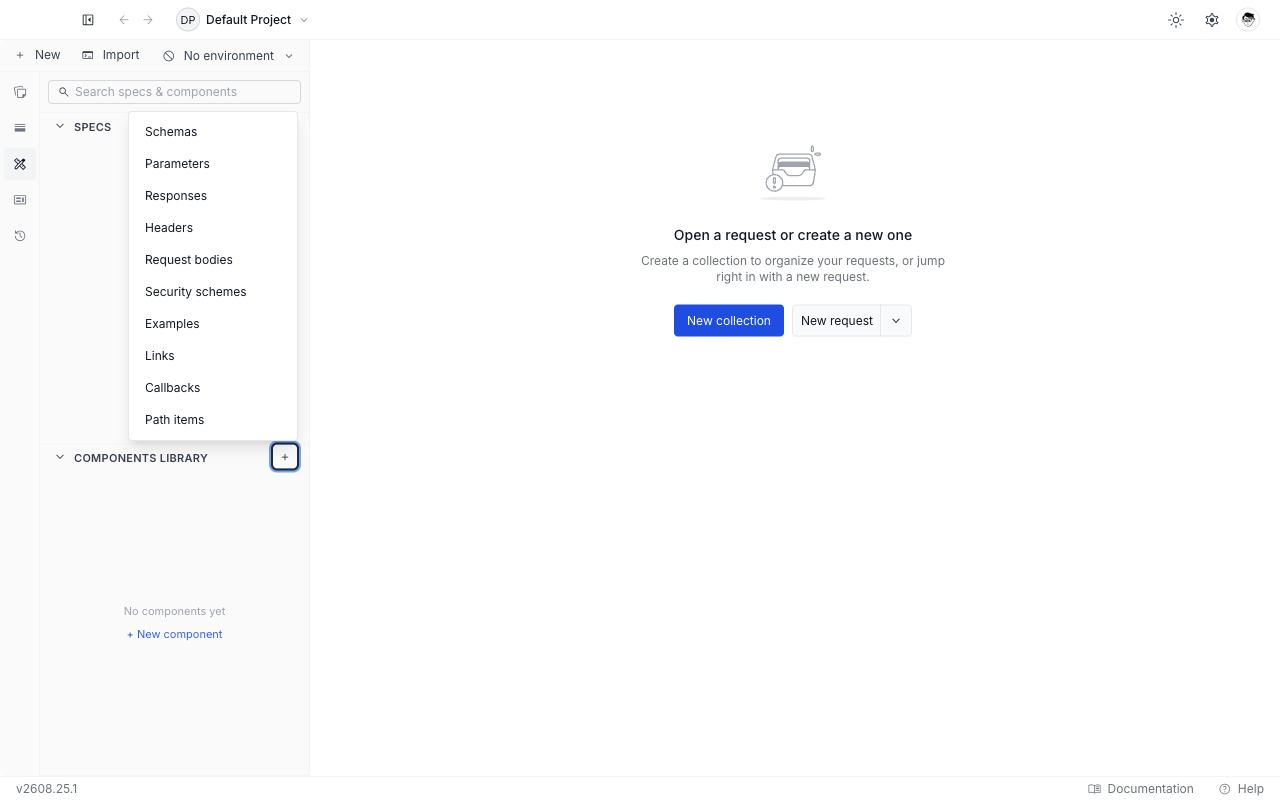

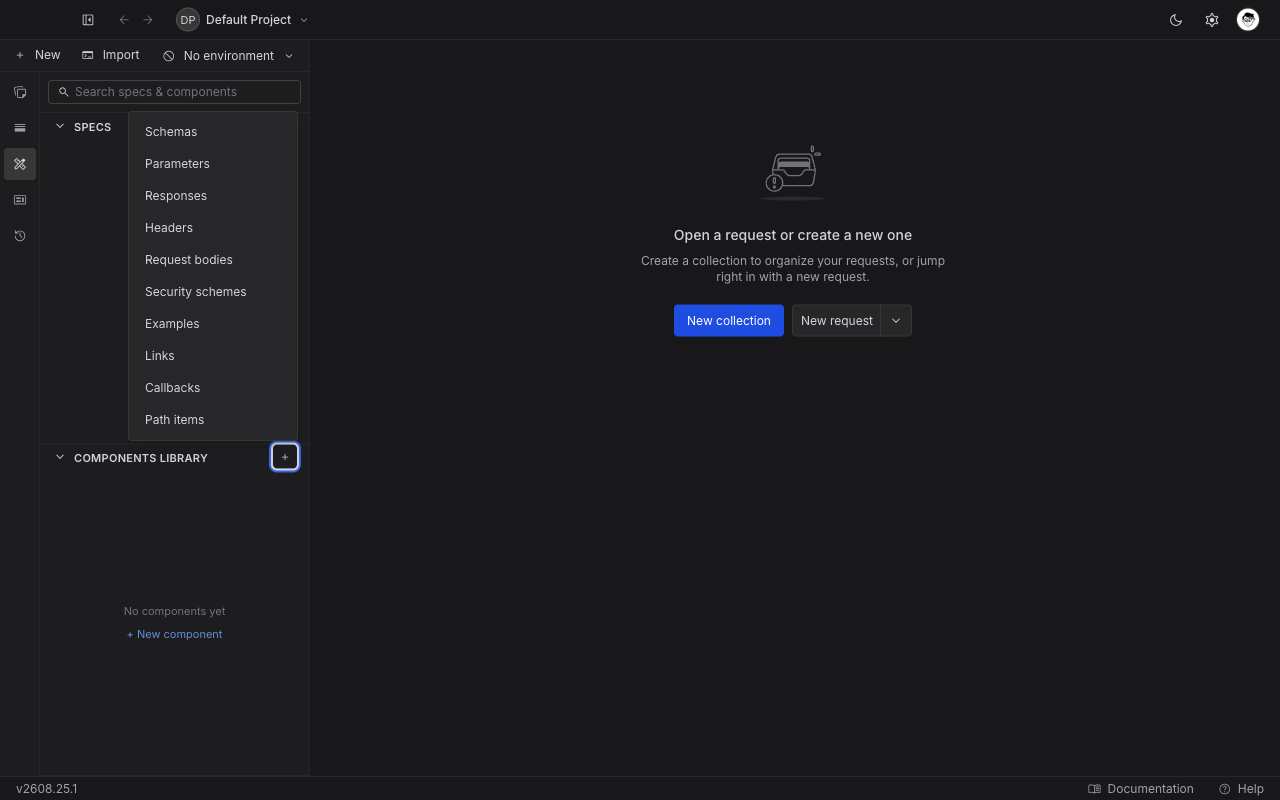

Click the + on the Components Library header and choose a category from the menu. To go straight into one category, hover its group row instead and click the + there.The same menu is on + New → Component in the sidebar toolbar.
2

Name it

The component opens in a new tab with its name focused in the breadcrumb. Type a name and press Enter.A name may use letters, digits, dots, hyphens, and underscores, up to 128 characters. It has to be unique within its category, and it is case sensitive: User and user are two different schemas, which is what OpenAPI itself does.
3

Write the body

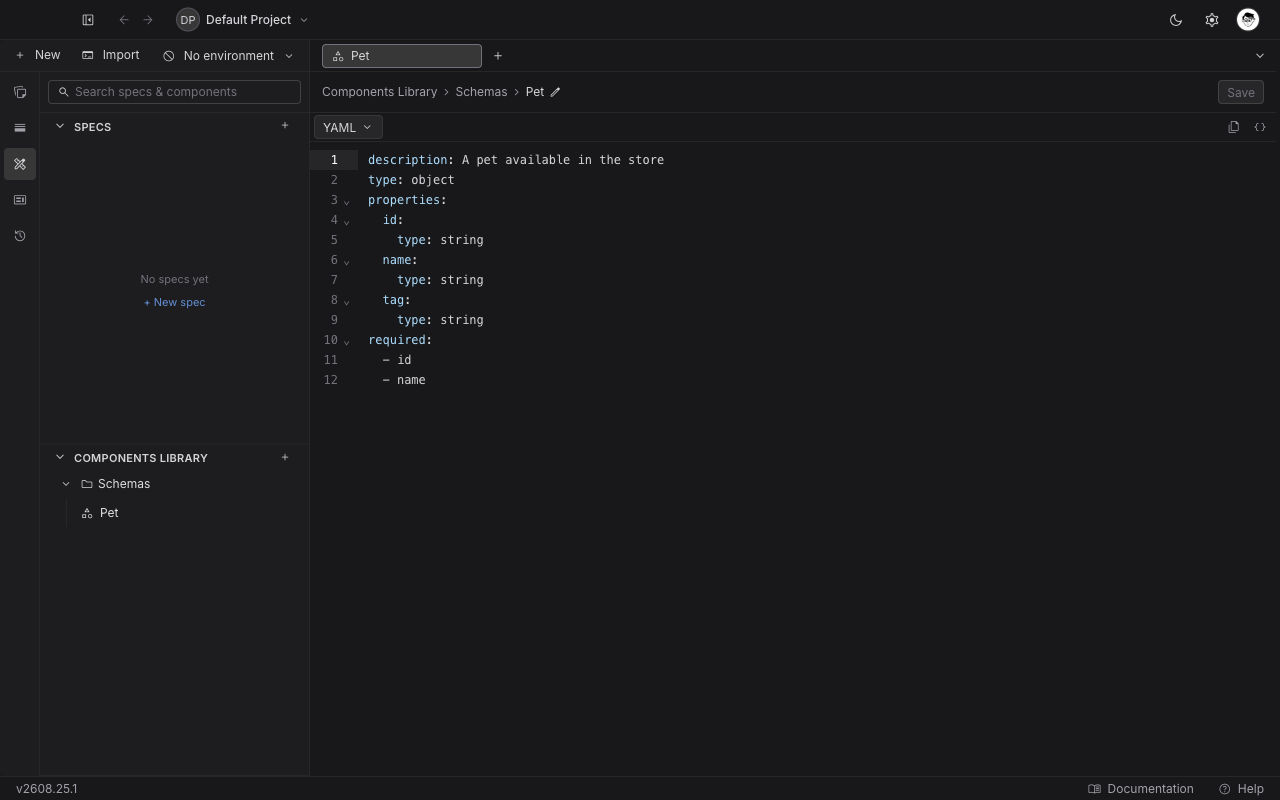

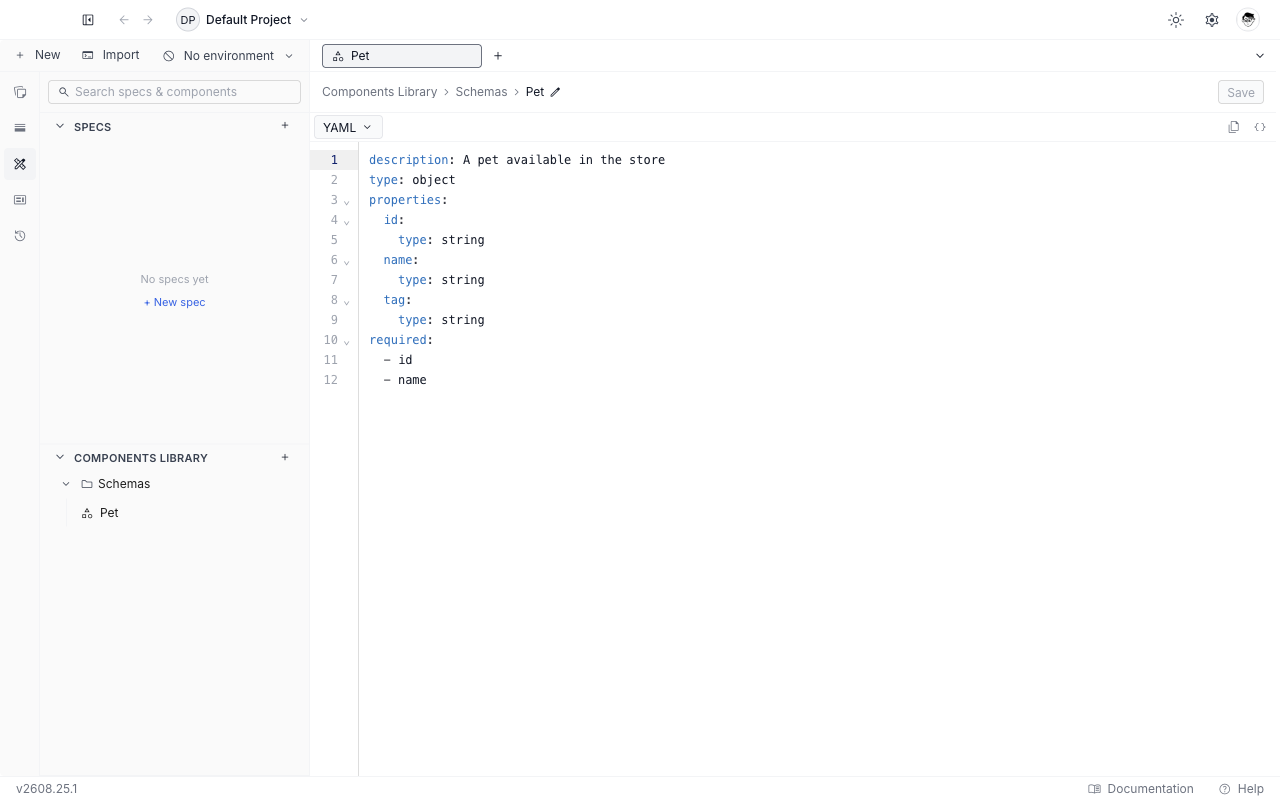

The editor is seeded with a minimal valid object for the category you chose, so you are editing rather than starting from nothing. A new schema arrives as:
Write the component object only. There is no components: wrapper and no name key inside the body: the name is the entry’s name in the sidebar.
4

Save

Press Cmd/Ctrl + S or click Save. A • unsaved marker sits beside the name until you do.
A component’s category is fixed once it is created. Moving a definition from Schemas to Responses means creating the new entry and deleting the old one, then repointing the references.

​
The component editor

A single editor pane, in YAML or JSON, with a YAML / JSON dropdown, Copy, and Format in the toolbar. There is no outline and no documentation rail: a component is one object, not a whole document. $ref completion works here too, so a component can reference another component. A NotFound response that points at an Error schema is written exactly the way a specification would write it.

​
Reference a component from a specification

In the specification editor, type $ref: and pick the entry from the list. Library entries are labelled library in the right-hand column, and selecting one writes the path for you:
These are standard OpenAPI relative references. Requestly does not invent a syntax of its own, so a document that references the library is still a document any other OpenAPI tool can read once the pieces travel with it.
Let the completion write the path. Hand-typing the relative depth is the easiest way to create a reference that resolves nowhere.
In the editor, a library reference is drawn as a chip carrying the entry’s name and category rather than the raw path. Hover it for the target’s description and a preview of its body, and Cmd/Ctrl + click it to open that component in its own tab. See create and edit a specification for the rest of the $ref behaviour.

​
When a reference does not resolve

Requestly checks every reference against the library and flags the ones that fail, both inline in the editor and in the Issues panel. Full triage, including the governance rules that run alongside these checks, is in issues and governance.

​
Rename or delete

Both are on the entry’s ⋯ menu in the sidebar, and renaming is also available by clicking the name in the breadcrumb. Renaming changes the path every reference uses, so references written against the old name stop resolving and are flagged in the specifications that hold them. Deleting asks you to confirm and warns that references to the entry will break. Neither can be undone. In a local project, library entries are files on disk under components/<category>/, so a rename or a delete is a change you can review and commit like any other.
