Availability: MQTT connections open from the Requestly Desktop App. In the web app you can create, edit, and save an MQTT request, but Connect is disabled with the note “This protocol requires the desktop app.”

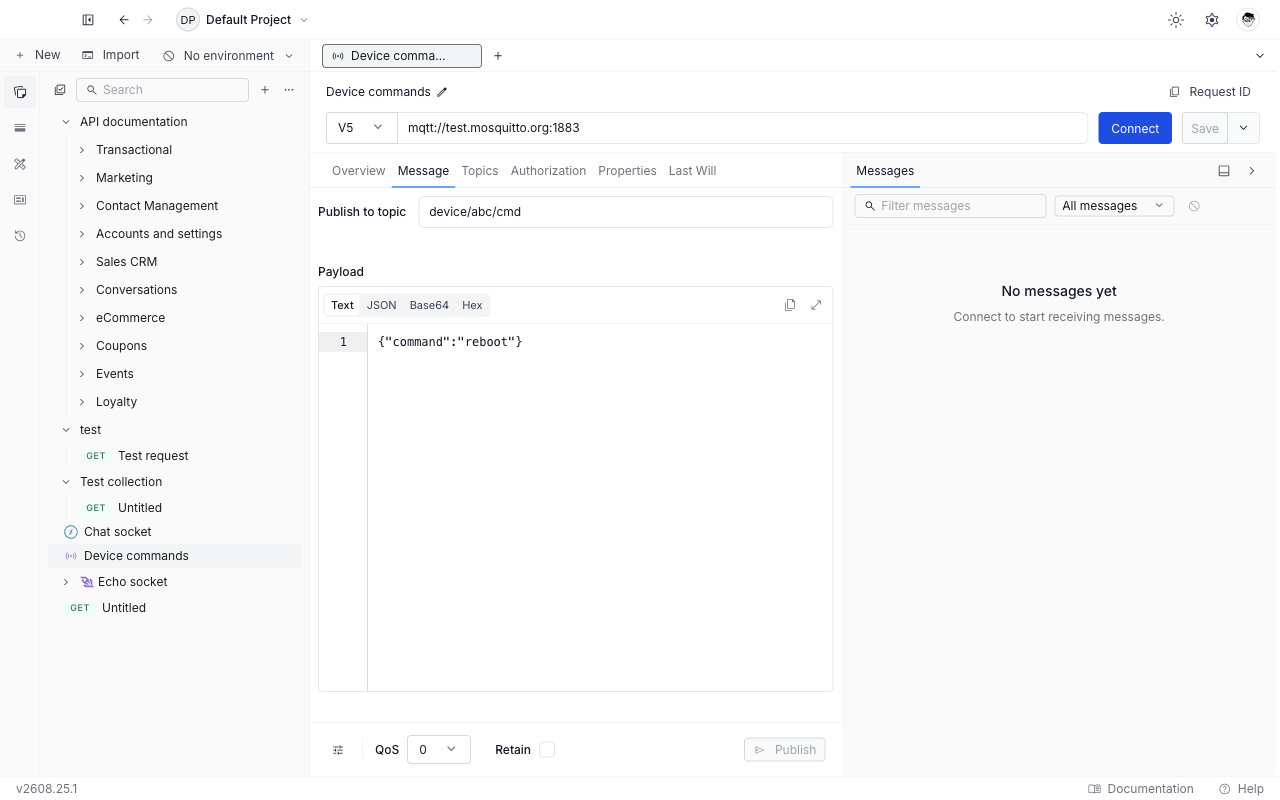

Create an MQTT request
1
Create the request
Click
+ New and select MQTT request. You can also click the + on a collection in the sidebar and choose MQTT Request to create it directly inside that collection.2
Enter the broker URL
Type your broker address into the URL bar. Requestly connects over four transports:If you type a host with no scheme, Requestly adds
A public test broker is handy while you are getting your bearings:
mqtt:// when you leave the field and nudges you to switch to mqtts:// if you want TLS. An unsupported scheme or a port outside 1 to 65535 shows an inline error and keeps Connect disabled.3
Pick the protocol version
Use the version selector to the left of the URL bar. V5 is MQTT 5.0 and is the default for a new request; V3 is MQTT 3.1.1.
4
Connect
Click Connect. A status dot appears at the right edge of the URL bar (amber while connecting, green once connected, red on failure), the button turns into Disconnect, and the timeline records a Connected entry.
5
Save the request
Click Save. The request is stored in your project and appears in the collection tree with a signal icon rather than an HTTP method badge, so you can spot MQTT requests at a glance.
Use variables in the broker URL
The URL bar accepts{{variables}} from your environment and collection scopes, including a bare placeholder that holds the whole address:
{{variable}} placed directly inside JSON braces, as in {"value":{{count}}}, fails to render and the publish is refused. Quote it as {"value":"{{count}}"} instead.
What locks while you are connected
The broker URL, the protocol version, and the Authorization, Properties, and Last Will tabs are all fixed at the moment of the handshake. While a session is live those fields go read-only and each of the three tabs shows a banner naming the broker you are connected to. Click Disconnect, change what you need, and connect again. The Message and Topics tabs stay editable throughout, because publishing and subscribing are exactly what a live session is for.The editor tabs

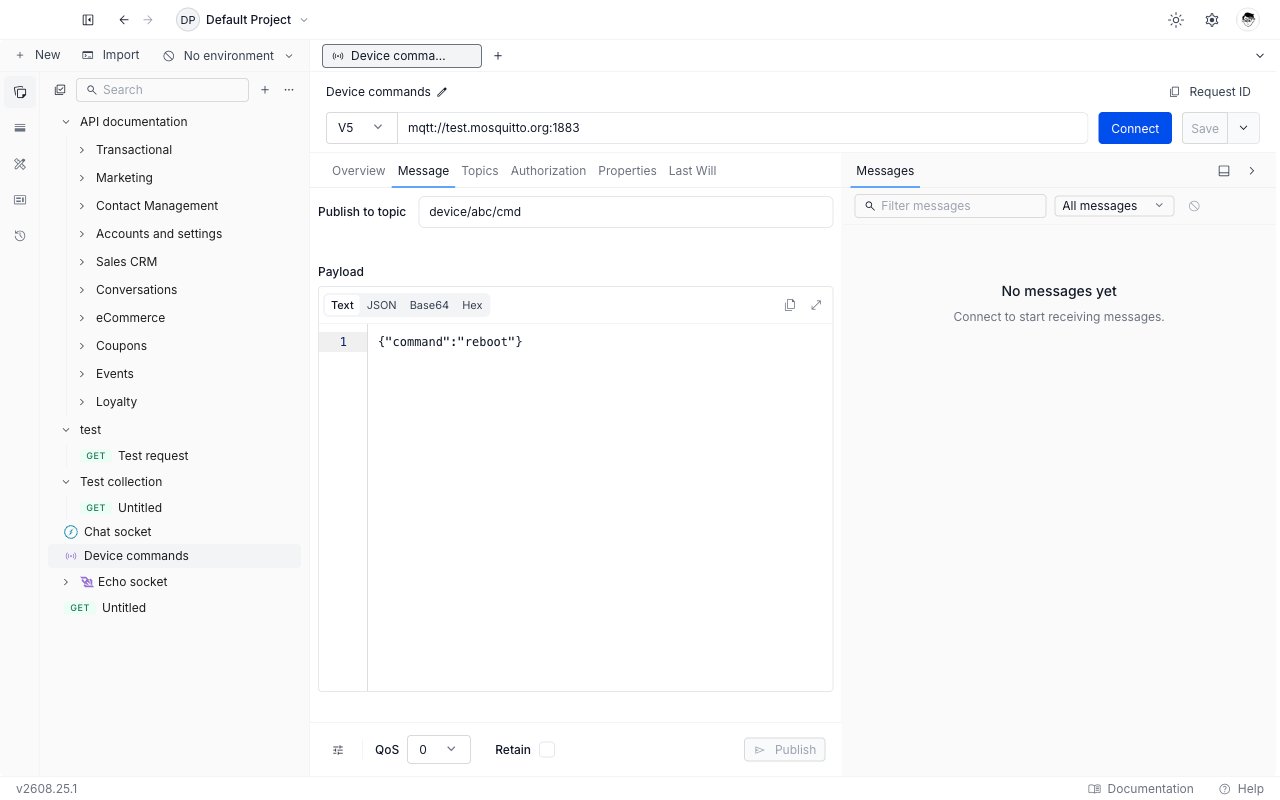

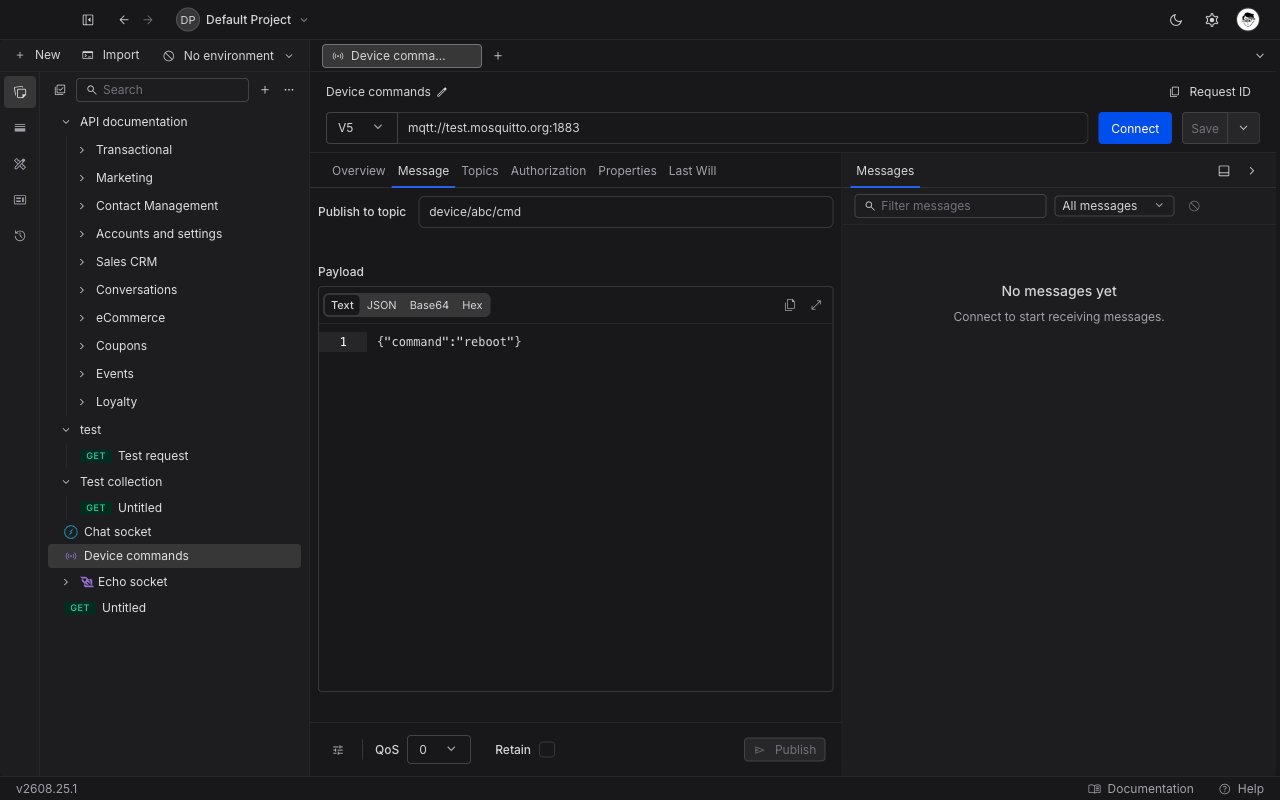

An MQTT request opens on Message. Alongside it are Topics, Authorization, Properties (on MQTT 5.0 only), and Last Will, plus an Overview tab where you can write a description of the request for your team.Message
The Message tab is where you compose and send a single publish.1
Set the publish topic
Enter the topic in Publish to topic, for example
device/abc/cmd. Publish topics must be exact: the + and # wildcards belong in subscribe filters, and Requestly flags them here with an inline error.2
Write the payload
Type the message body into the Payload editor and pick how you are entering it: Text, JSON, Base64, or Hex. Requestly validates Base64 and Hex as you type and converts them to bytes when it sends.
3
Choose QoS and retain
Set the delivery guarantee with QoS (
0 at most once, 1 at least once, 2 exactly once) and tick Retain if you want the broker to hold the message as the topic’s last known value for future subscribers.4
Publish
Click Publish. The button is enabled only while you are connected and the topic and payload are valid. The message appears in the timeline with an up arrow. At QoS 1 or 2 it also carries a status dot that fills in when the broker acknowledges it; at QoS 0, the default, there is no acknowledgement on the wire and so no dot.

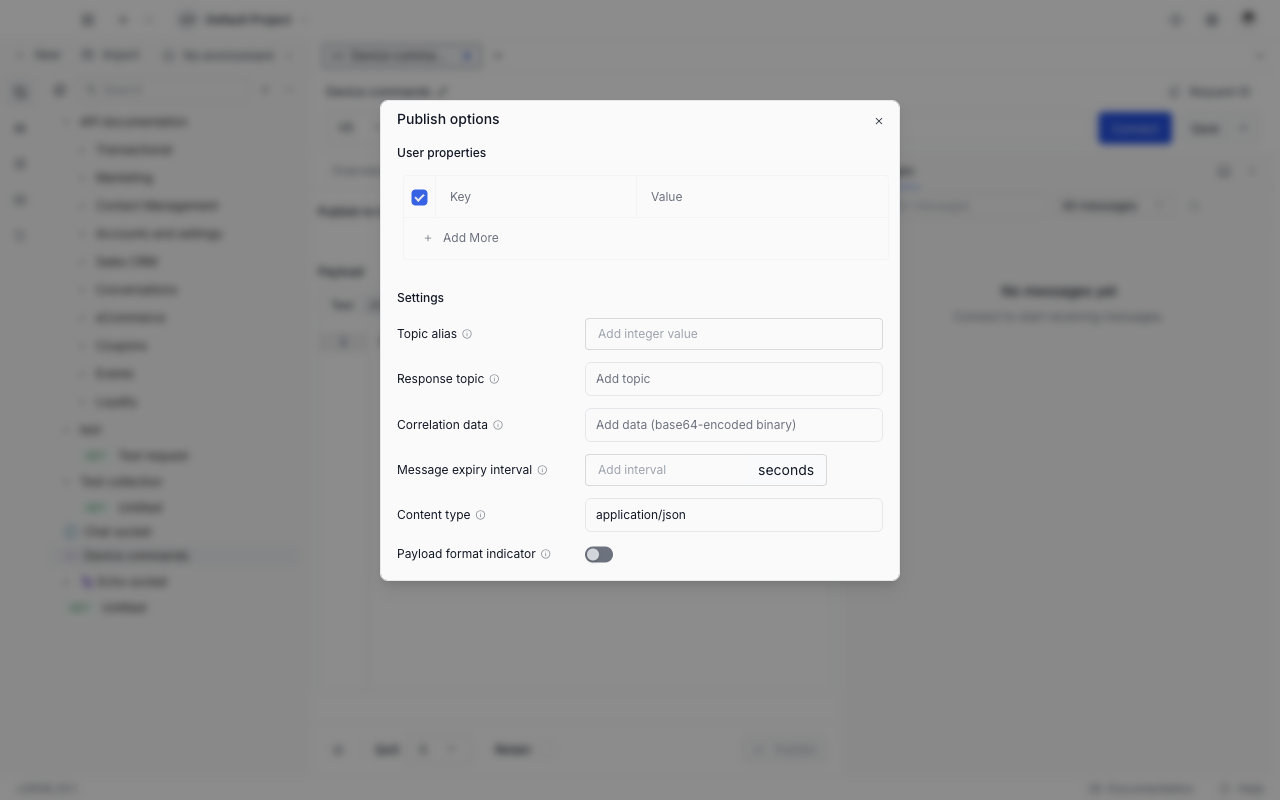

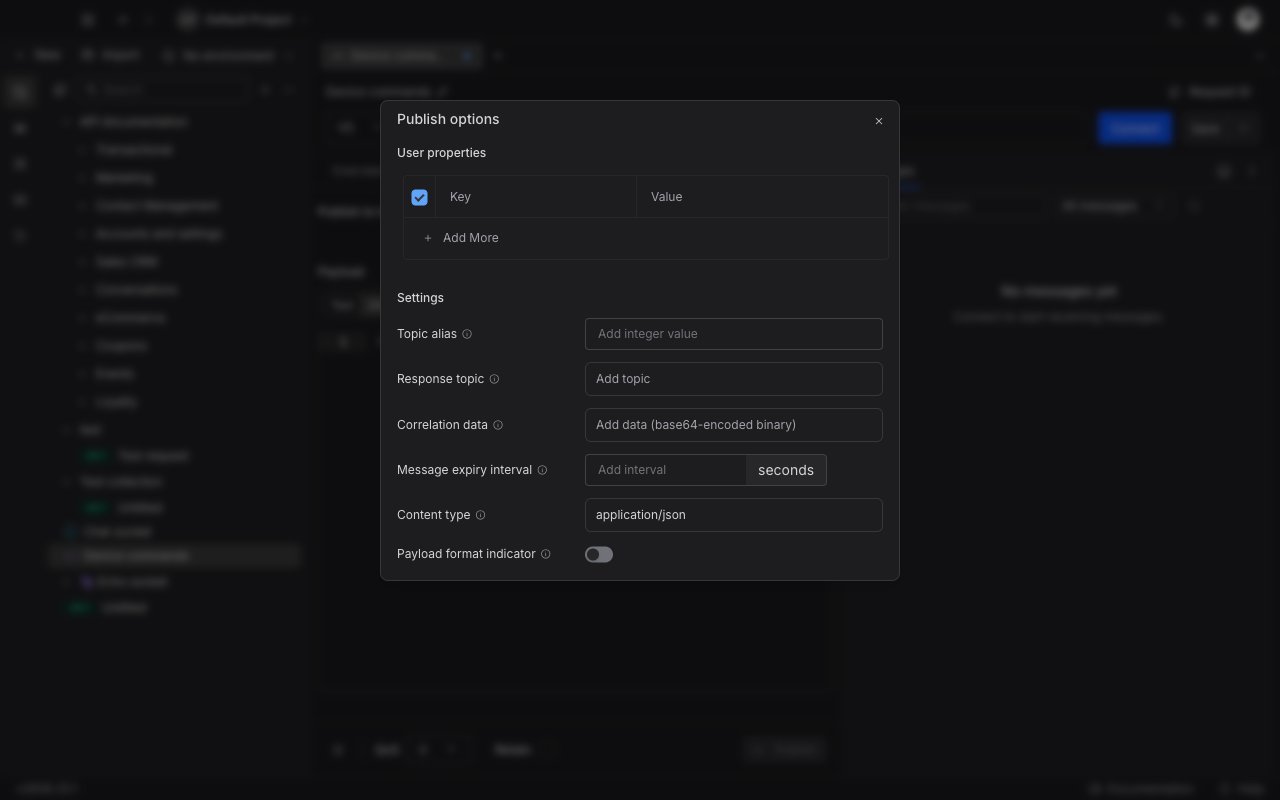

- Topic alias replaces a repeated topic string with a small integer to shrink packets.
- Response topic and Correlation data together let you do request/response over pub/sub.
- Message expiry interval tells the broker how long to keep trying to deliver.
- Content type labels the payload, for example
application/json. - Payload format indicator flags the payload as UTF-8 text rather than opaque bytes.
- User properties attach arbitrary key/value metadata to the message.

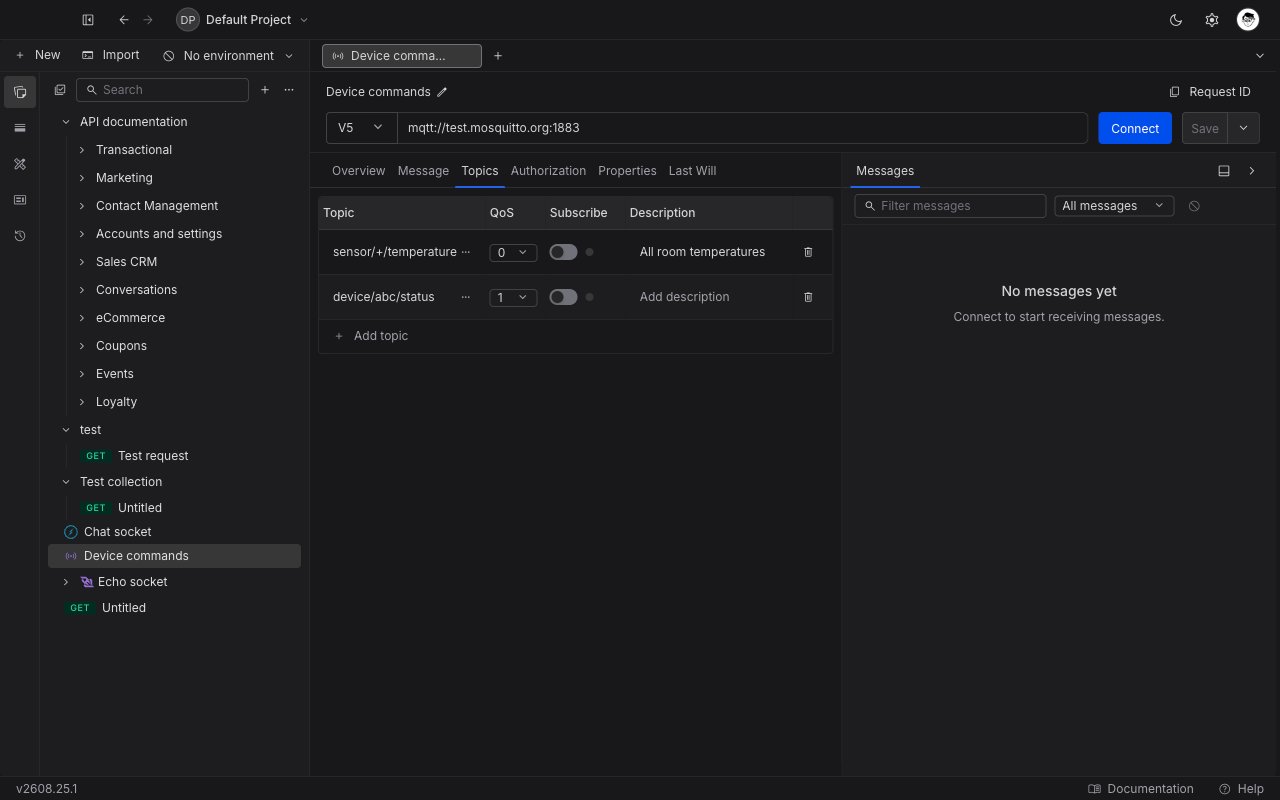

Topics

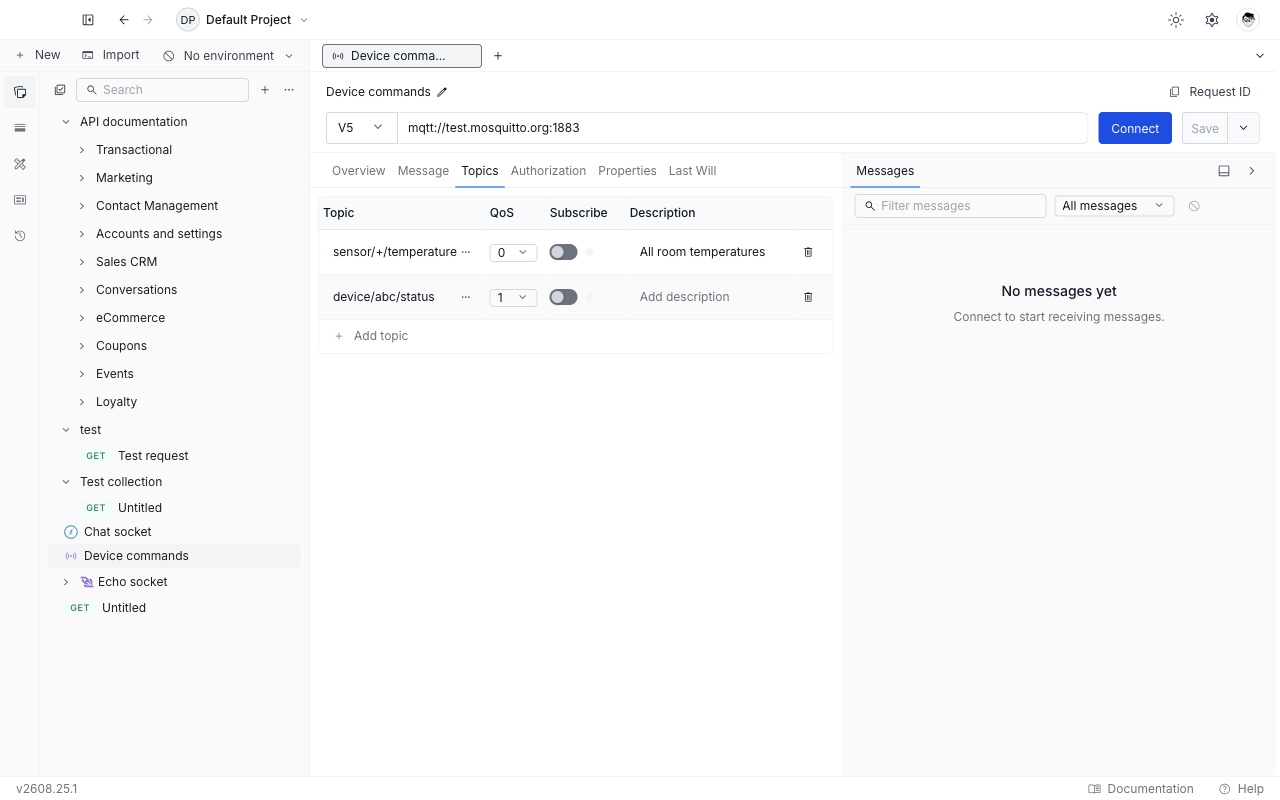

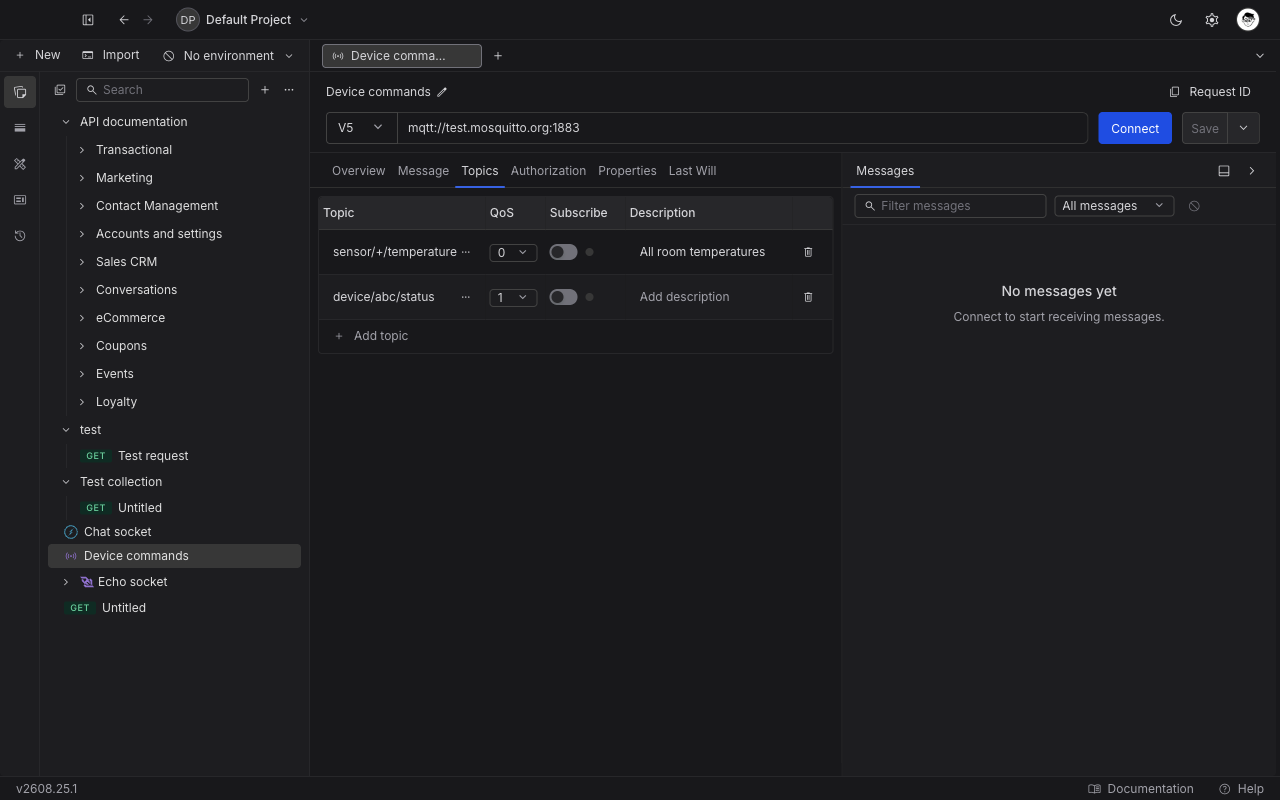

The Topics tab holds the subscriptions that belong to this request. Each row is one topic filter with its own QoS, an optional description, and a Subscribe toggle.1
Add a topic filter
Click Add topic and enter a filter. Wildcards are allowed here:
+ matches one level (sensor/+/temperature) and # matches everything below a level (sensor/#).2
Set the QoS
Pick the QoS you want the broker to grant for this filter. Once the subscription is live, the status dot’s tooltip tells you the QoS the broker actually granted, which can be lower than the one you asked for.
3
Turn the subscription on
Flip Subscribe. If you are already connected, Requestly sends the subscription right away. If you are not, the row waits and shows a “queued” dot, then subscribes as soon as you connect.
... button at the right of a topic row opens Subscription options for that single filter: a Subscription identifier the broker echoes back on matching messages, per-filter User properties, Filter local messages (so the broker does not send you back your own publishes), Retain as published, and Retain handling (whether retained messages arrive when you subscribe).
Authorization
MQTT requests authenticate with a username and password on connect. Choose Basic auth and fill in the two fields. Both accept{{variables}}, so credentials can come from an environment rather than being typed into the request.
Properties
The Properties tab carries User properties for the connection itself: key/value metadata sent with the connect packet, which brokers commonly use for tenant tags, client metadata, or routing hints. This tab exists only on MQTT 5.0. User properties are a 5.0 feature, so switching a request to V3 removes the tab entirely, and if Properties was the tab you were on, the editor drops you back to Message.Last Will
A Last Will is the message you want the broker to publish on your behalf if your connection drops without a clean disconnect, which is how a fleet learns that a device went offline. The tab starts empty. Click Configure Last Will, then set the Will topic, the Will message (with the same Text, JSON, Base64, and Hex modes as a publish payload), Will QoS, and Will retain. Remove Will clears it again. On MQTT 5.0 the tune icon opens Will options, which adds a Will delay interval: the number of seconds the broker waits after your client disconnects before publishing the Will, so a brief reconnect can suppress it entirely. The same 5.0 message properties available on a publish apply here too, except Topic alias, which a Will does not carry. In its place the Will offers a Will delay interval. A Last Will with an empty topic counts as not configured and is left out of the connect entirely.Read the message timeline

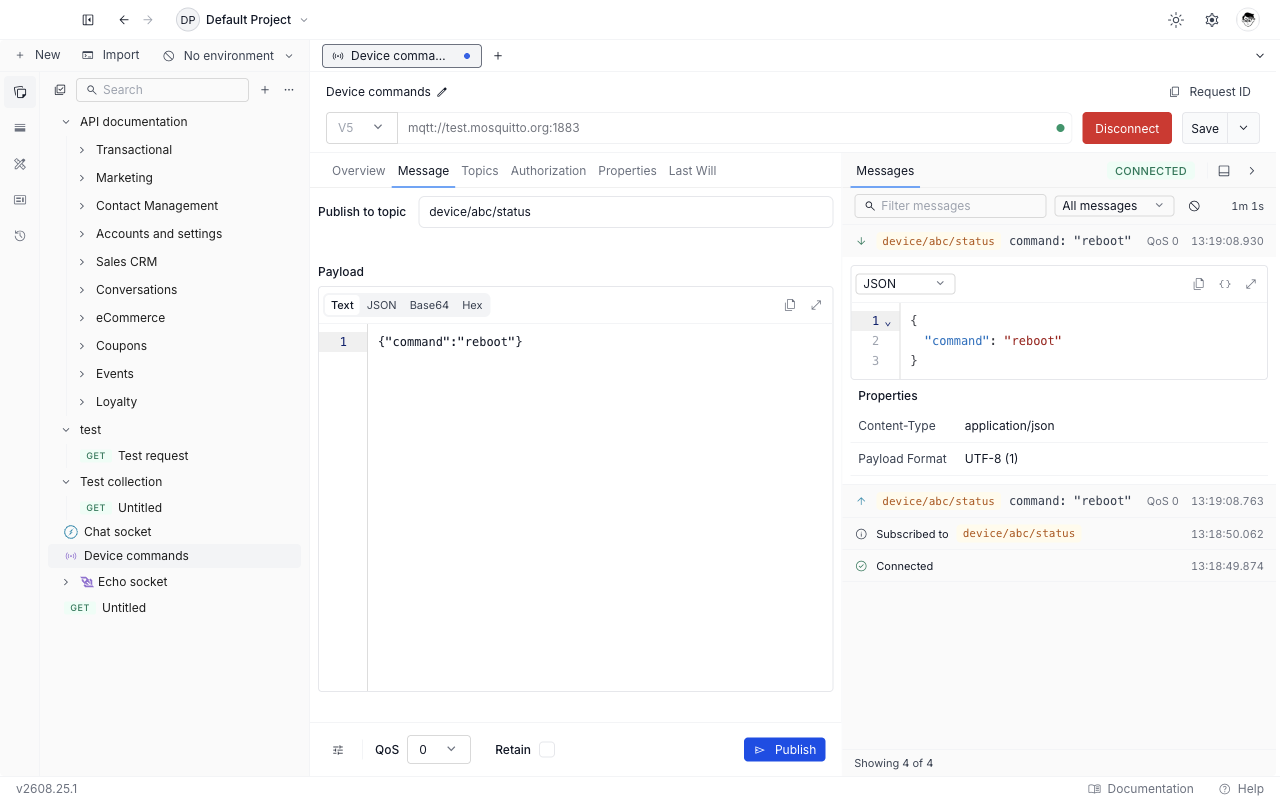

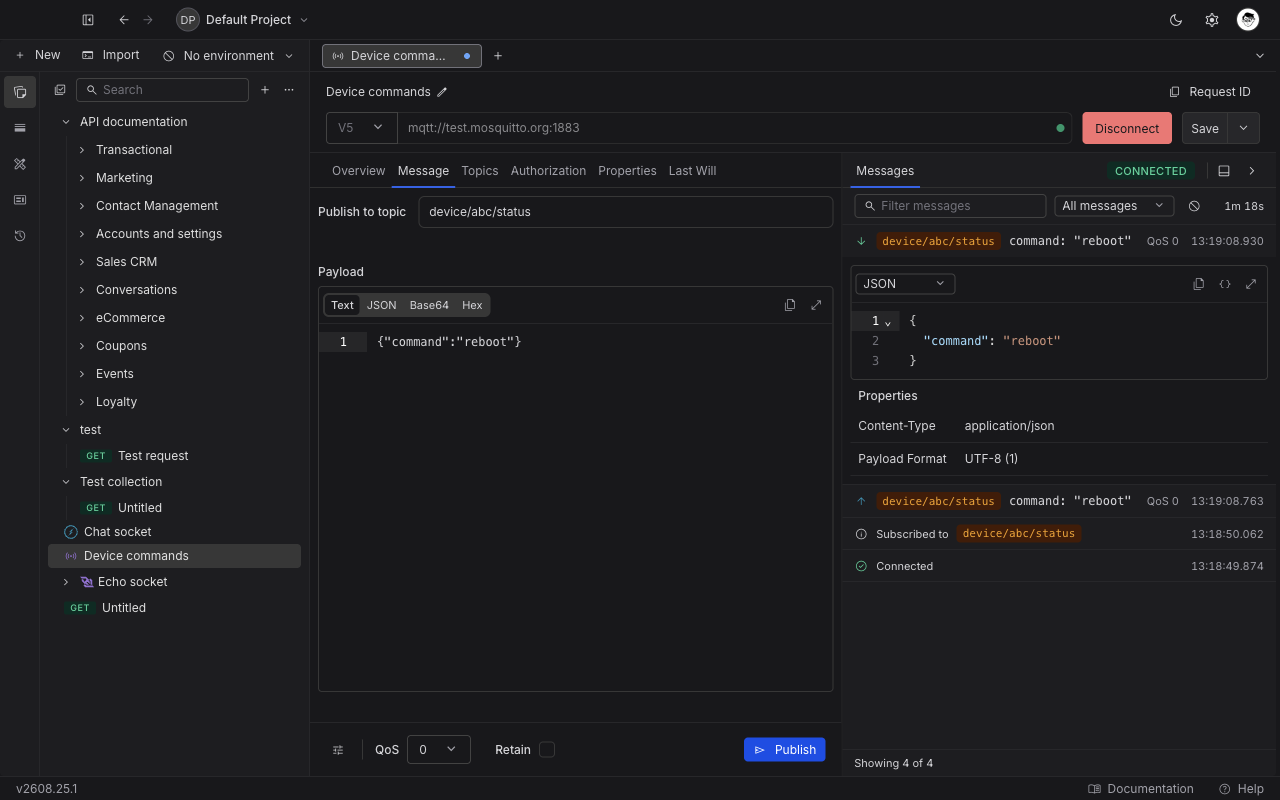

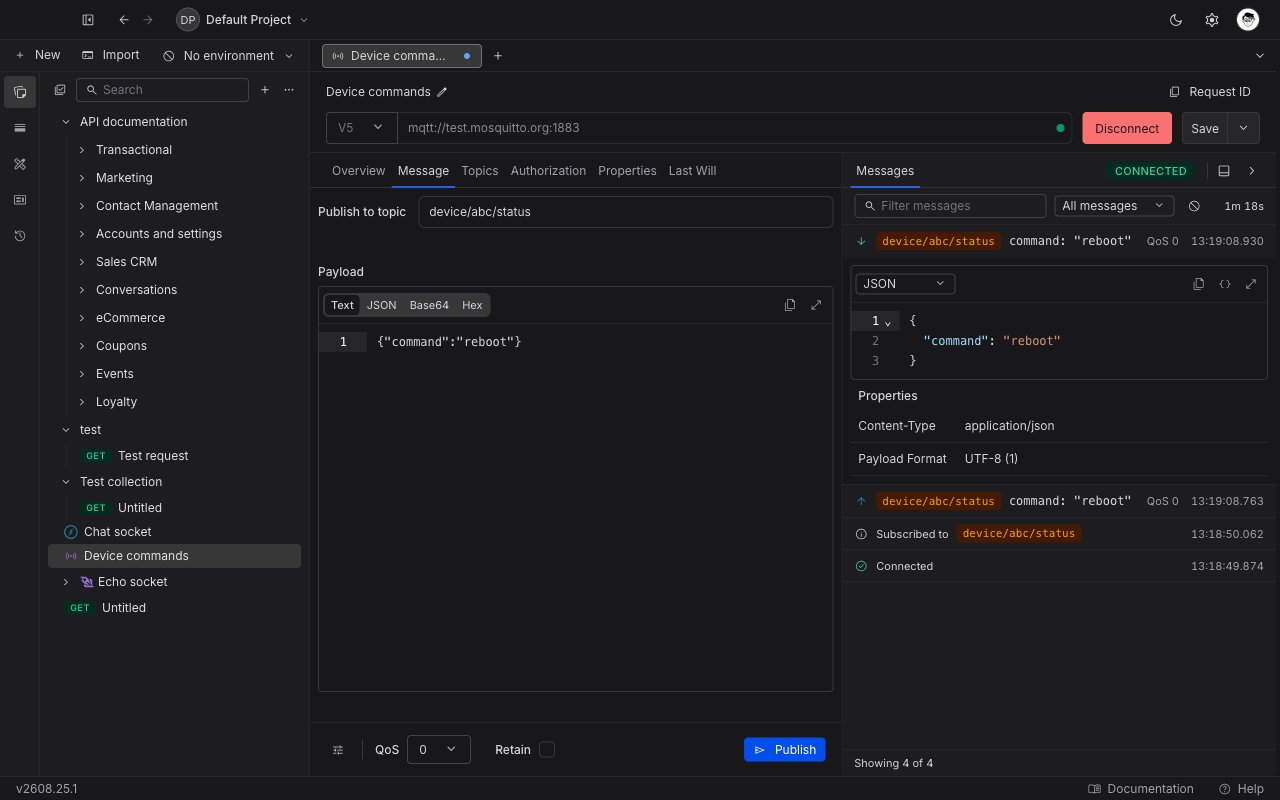

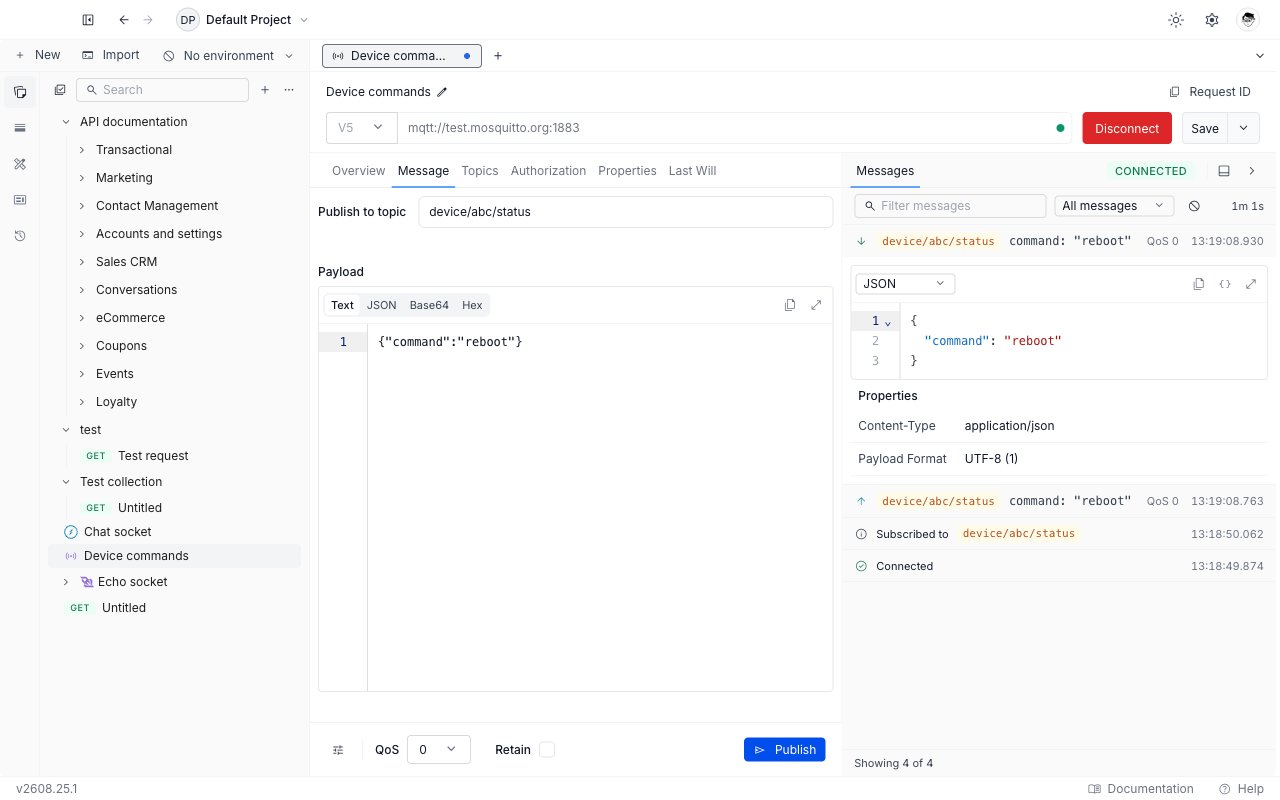

The panel to the right of the editor is the live record of the session, newest entry first. It carries three kinds of row:- Messages you published, marked with an up arrow. At QoS 1 or 2 a status dot fills in when the broker acknowledges the publish. QoS 0 has no acknowledgement, so those rows show the arrow alone.
- Messages you received, marked with a down arrow, on any topic you are subscribed to.
- Connection and subscription events: connected, server disconnect, and each subscribe or unsubscribe acknowledgement, including the broker’s reason when it rejects one.
Filter and search
The filter bar above the list narrows what you see. Type into the Filter messages box to match on topic, payload, or the text of an event, and use the dropdown to show All messages, only Received, only Sent, or only Others (the connection and subscription events). The two combine, and a counter at the foot of the list tells you how many of the total entries are showing. The clear button empties the timeline. Requestly keeps the most recent 10,000 entries, or 100 MB of message data, whichever it reaches first. Large payloads therefore start evicting well before 10,000 rows. When a session passes either cap the oldest entries are dropped and the counter reports how many were evicted.Expand a message
Click a published or received message to open it. The expanded row shows:- The payload, in a read-only editor with its own Text, JSON, Base64, and Hex switcher. Requestly inspects the actual bytes to pick the opening format, so a JSON payload opens as JSON, plain text as text, and anything that is not valid UTF-8 opens as Base64. The collapsed row shows the byte size for those. On MQTT 5.0 a
Content-Typeoftext/...overrides the guess and opens the payload as Text. Switching formats re-decodes the same bytes, so you can read a binary payload as Hex without touching the message. - A Retain marker in the editor header when the message carried the retain flag.
- MQTT 5.0 properties the message arrived with or was sent with: Content-Type, Response Topic, Correlation Data, Message Expiry, Topic Alias, Payload Format, the Subscription Id the broker matched, and any User Properties. MQTT 3.1.1 messages never carry properties, so nothing is shown for them.
- A failure banner if the broker rejected your publish, with the reason in plain language.
Save and reuse MQTT examples
An example is a saved snapshot of an MQTT request’s configuration: the broker URL, the protocol version, the subscriptions, the publish message, the authorization, the properties, and the Last Will. Use them to keep a set of named scenarios (a staging broker, a malformed payload, a QoS 2 publish) beside the request they belong to. Examples work on both cloud projects and local projects.1
Save the current setup as an example
With the MQTT request saved, open the dropdown next to Save and choose Save as example. You can also right-click the request in the sidebar and choose Add Example. The example opens in its own tab and appears in the sidebar underneath its parent request.
2
Edit and save the example
An example opens on the same tabs as the request, bound to the snapshot instead of the live request. Change whatever you need and click Save.
3
Run it with Try It
An example holds no broker session of its own, so its primary button is Try It rather than Connect. Clicking it opens a new draft MQTT request pre-filled from the example, and you connect, publish, and subscribe there.
Import and export MQTT requests
MQTT requests round-trip through Requestly’s own export format. Export a collection to a.json file and its MQTT requests, their subscriptions, publish messages, Last Wills, MQTT 5.0 properties, and their examples all travel with it. Import that file into another project or onto another machine and they come back intact. The steps are the same as for any collection: see Import / Export Collections.
Other formats have no vocabulary for MQTT. Exporting a collection to Postman’s format drops MQTT requests and their examples, and the export dialog does not name what it dropped, so use Requestly’s own format whenever MQTT requests need to come along.
MQTT requests in the Collection Runner
The Collection Runner runs a collection’s requests in sequence. You can select an MQTT request in the run order and it appears with an MQTT badge, but it does not connect: the runner executes one request at a time and waits for it to finish, which a long-lived broker session never does. Each MQTT request in a run is recorded as skipped, with the reason on the result row reading “not supported in runner”. Skipped requests are counted in the run summary and listed under the Skipped tab, so a run stays green and you can see exactly what was left out. Connect to brokers from the request editor instead. Scheduled Runs go further: an MQTT request cannot be added to a schedule at all. Its row is locked in the request picker with a note that the protocol cannot run on a schedule.What’s next?
